Other RP2040 boards • Re: Custom RP2040 board constantly in BOOTSEL

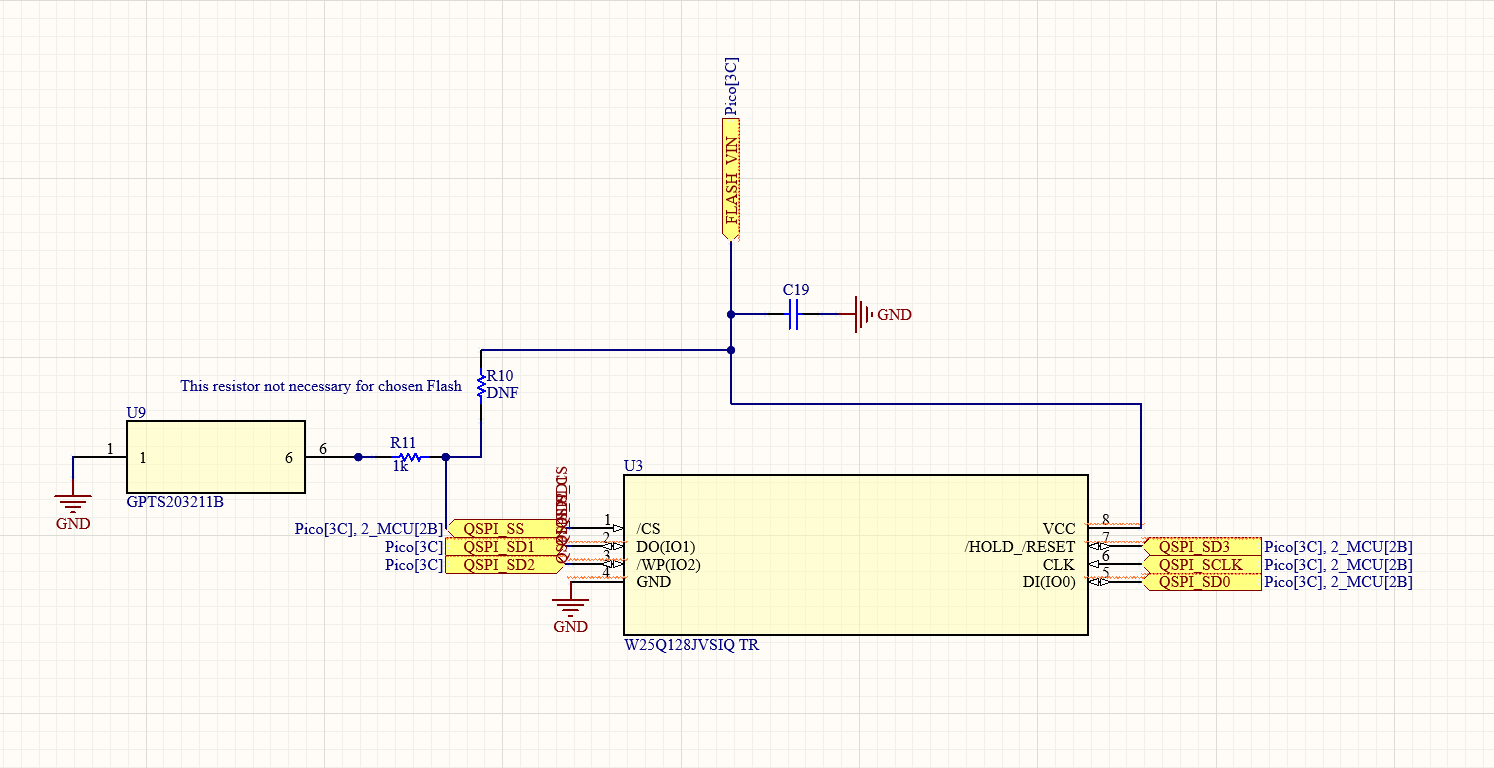

Sure. R10 is DNF. Not fitted, didn't see it necessary. It seems like the flash chip has an internal pull up when verifying with a multimeter.

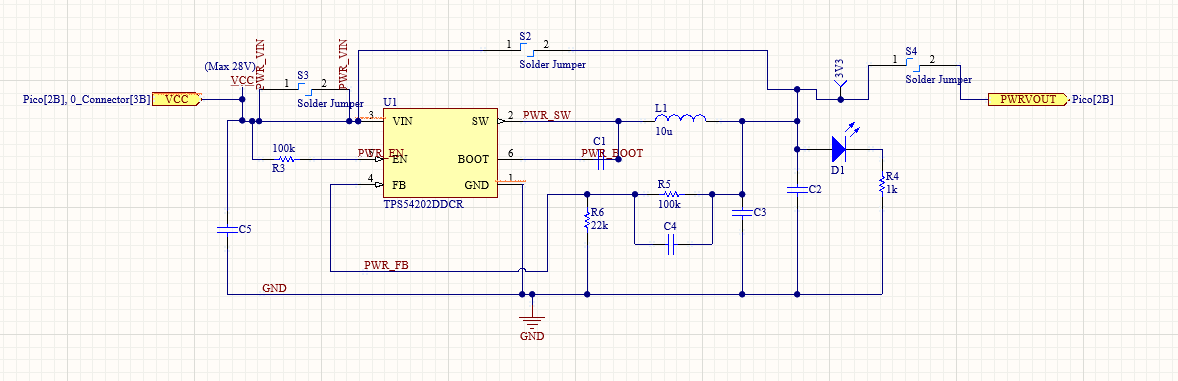

Image may be NSFW.
Clik here to view.

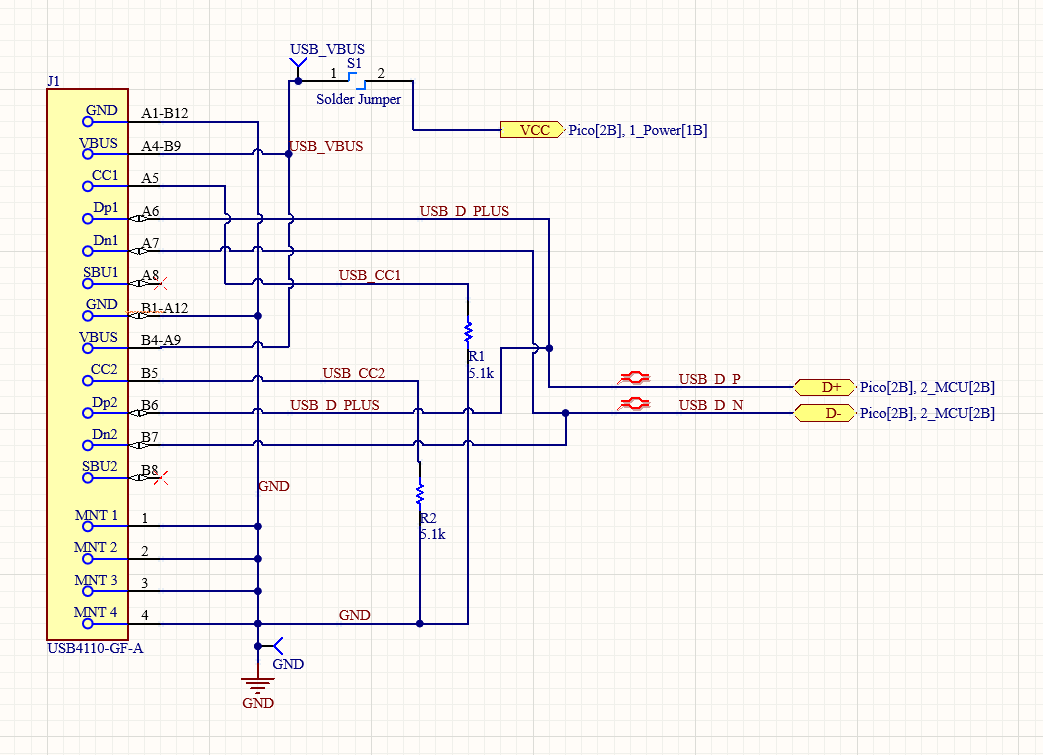

Image may be NSFW.
Clik here to view.

Image may be NSFW.
Clik here to view.

C1, C7, C9, C10, C11, C12, C13, C14, C15, C16, C19, 100n
C2, C3, 22u
C4, 56p
C5, C20, 10u
C6, C8. 1u
C17, C18, 15p
R1, R2, 5.1k
R3, R5, 100k
R4, R9, R11, R24, 1k
R6, 22k
R7, R8, 27
R10, DNF
R12, R13, R28, 10k
R14, R15, R16, R27, 100
R21, R22, R23, 0
R25, TBD
R26, 10

Statistics: Posted by bzzt_ — Tue Jan 21, 2025 10:23 pm

---
